Introduction to Cart2Quote

Introduction

Cart2Quote is the most complete Magento module that enables customers and shop owners to create a Request for Quote (RFQ’s) on Magento websites. With Cart2Quote you can effectively track customer quotations, edit quotation requests, create proposals and convert quotations to orders. This all via the frontend or back-end of Magento or via the API web services available in Cart2Quote Enterprise.

It is recommended you first install the module in a test Magento environment that is a copy of your live store. After you have verified the module works correctly in your test store, you can safely install the module in your live website.

For a complete elaboration of all Cart2Quote functionalities, please refer to the User Manual. The User Manual explains Cart2Quote’s functionality from two perspectives: First from a customer perspective in the frontend and second from a shop admin perspective in the back-end.

It is recommended to let the module be installed by a technical implementer when you do not have the necessary knowledge of Magento modules installations. The Cart2Quote module may require some changes to your existing template. Please consider purchasing the installation service.

Back To Top

Installation Cart2Quote

Backup your data

Backup your store database and web directory. You can backup your database through the Magento admin facility under the system-tools-backups menu. Backing up your files can usually be done through the configuration panel of your hosting provider. A database backup is also recommended.

Back To Top

Download and extract

Download the extension from our website (from your client area in our store) and unzip the extension’s contents on your computer and navigate inside the extracted folder.

Back To Top

IOnCube

To protect our intellectual property we have encrypted our software. Therefore you need to have ionCube installed on your server. Don’t know if you have ionCube? Ask your hosting company to find out. Require open source version? Buy or upgrade to our Cart2Quote Enterprise edition with open source option.

For more information about IonCube and Cart2Quote, take a look at the support article on installing Cart2Quote IonCube files and the support article on installing IonCube on your server.

Back To Top

Disable Compilation Mode

This may not be an issue for many readers, but if you are using Magento’s compilation mode on your store, it is important that you remove it. Without going into too many details, compilation mode takes many files spread out over the system and condenses them into a single file that can be run very quickly. If the files of Cart2Quote are not in the system when this single file is ‘compiled’, they will not be included.

To check that this is disabled, go to:

Located: System > Tools > Compilation

If the compiler status is ‘Disabled’, you are ready to go. If not, simply click the ‘Disable’ button on the right hand side of the screen.

Located: System > Tools > Compilation

  1. Backup web directory (FTP)
  2. Backup database (MYSQL)
  3. Download and extract Cart2Quote extension from our website
  4. Check your server for an installed ionCube
  5. Check the ionCube version
  6. Disable Compilation Mode

Back To Top

Disable the cache

The Magento front end relies heavily on caching to provide a faster experience to customers. This is a wonderful tool, but can wreak havoc during the installation process. To ensure that the cache is not the cause of any problems, we should turn it off. This can be done from the admin console by navigating to the cache management page, selecting all caches, clicking ‘disable’ from the drop-down menu, and submitting the change.

Located: System > Cache Management

1
  1. Turn off cache for all cache types
  2. Flush Magento Cache
  3. Flush Cache Storage
  4. Flush Catalog Images Cache
  5. Flush JavaScript/CSS Cache
Uninstalling Cart2Quote? Do not test Cart2Quote on a production environment! Always make a backup of your store before the installation. Only install Cart2Quote on a production environment after thorough testing.

Back To Top

Upload Files

Using your FTP client, upload the content of the Cart2Quote package to your store root. The content of the unzipped folder will look like this:

2

You can upload the content from the folder 1.7_1.9 to your Magento root. Your Magento root already contains the app and skin folders, by uploading you will add new files to the already existing folders.



Always make sure you merge the folders and do not replace the existing folders

Back To Top

Clear all cache & enable compilation mode

Go to System->Cache Management and click ‘Flush Cache Storage’. This will ensure that everything cached by Magento is deleted and will be regenerated. Once everything works as expected you can enable the cache and the compiler mode again.

Located: System > Cache Management

Back To Top

Logout from Magento and login again

Make sure you logout from your admin panel and login again. (else you will maybe see a 404 page). Step 7 and 8 eliminate almost all potential problems.

Back To Top

Your license keys

If you have a paid version of Cart2Quote you can utilize all functionalities including those of the backend. The license key will be provided by Cart2Quote within 24 hours after your order is completed. The license key will be sent to the registered email address and can also be found in your account dashboard. Without a license you will not be able to create quotes in the Magento admin, create proposals, convert quotes into orders, track your leads etc.

Locate: System > Configuration > Cart2Quote > Quotations > General

Experiencing installations difficulties? Go to our User Forum to see the solution for the most common problems. Or consider buying our installation service or Technical support tickets.

Back To Top

Free license

For IP number 127.0.0.1 (localhost) you can input the following serial key from the backend:

Located: System > Configuration > Cart2Quote > Quotations > General

When using Cart2Quote version 1.0 to version 4.4 use the following license key:

022c33d513a871a7958a0c5d94717f1d;23e8b229b02630d089d4a5a91871f37f;9675324bf3da955794913bef7ec5ee42;e2bbe9676cc132da9799d4ae8016a830;983f4a9e12d55d777707b03a50c80932;c14dd41e12d90125859c37113e2ffd48;e3ba127ae4006bd358b00e7a1b2d5704;a671533cc98bbe93a0e98f8b9225d75d289cf58d7b1d862b61884f308e3f805b;ceca653b6ee89552496739559f621725;880c376d80f9afd2405c45420d2f08d9;799644a36d080e70d45f130806caeb6a;ebc4640259b7059b625bf11c62d5bb29;fe4a6f94b513f70f52cd11067acb147c;4a730dc1235678e7104616f3fb94e0a6;5150e42d0aac2fe10b8f8a08d01ce1dd;

When using Cart2Quote version 5.0.x use the following license key:

YjZlOWYwMGQ5NzEyODJhMTIxMjYzNjE5OTZkZTA2NDM7YmE3YWVhMDcxNjllZmQ4YTRiZDliZGM0YmI3NjRjMzQ7

When using Cart2Quote version 5.1.x use the following license key:

MGIyODdmNjY2Mjk1NzE4MGNiYjE5YWUwODE0OWFlMjA7NDk5MGU2OTlhMzczODFiZWY5YmNkY2E5OWRhZWNjOTQ7OGE2OWRjZWQyM2QxN2YwZGRjZGM1ZmJhYWVkMTc1YTE7MjkyOGQ0OWNiMGE0MmQ4OTQxNWM2NmY1MDY5ZDNmNWI7MGIyODdmNjY2Mjk1NzE4MGNiYjE5YWUwODE0OWFlMjA7

When using Cart2Quote version 5.2.x use the following license key:

YWZhYjM3ODliZWNjNTFmZTczMTNhZjkzMjA0ZDkzODY7MDE0ZDA5ODYzOGI5ZGJkNDFiNzU1ZmUxOTRhOTExZmI7OGI3ZjFjMWNiYTYwN2JhZWE0OTI0NWI0NTJlOThmNDk7NjQyZjgxY2Y1NzRkYTBlMDBlYTMwY2YyYzdlZDY2MDc7YWZhYjM3ODliZWNjNTFmZTczMTNhZjkzMjA0ZDkzODY7

When using Cart2Quote version 5.3.x use the following license key:

NWQzMGM5MjkwMjFmOTI0YTMyOTgxMGRiMDMwYTJkZGU7NzhkNjQyMGVhOTE0YjJlZDBhYmJiNDA0MTIxYTBkMmQ7YThkM2E2ZDk0YjI1NTdkN2Q1NmY5OGYzNGYzYjJjZWU7MTYyMjk2Njk1MmIyYzU5ZTdmMzdhYjE2OWY3NGQ0NjQ7NWQzMGM5MjkwMjFmOTI0YTMyOTgxMGRiMDMwYTJkZGU7

When using Cart2Quote version 5.4.x use the following license key:

Y2NiMTQ2YTkxOTI4ZmQ3OTk3Mzk4NTkzMmZmYTRiZDA7NTFlYjMxZTI2NjJjMTI1ZGVmZTk2MzZkZjQ0YTg3ZmY7NzQ1ZTJmYmIxNGZlMDA0ZmM0YTlkYTcyM2ZjN2E4ZWM7

You can test the module on your local machines with full functionality with the provided key.

When you install the software online, without purchasing a license, only the free and basic functionalities of Cart2Quote will be enabled. You will need to set the extension to enabled.

  1. Merge the Cart2Quote install files with the Magento root folder
  2. Merge the right IonCube files with the Magento root folder
  3. Enable compilation mode
  4. Flush Magento Cache
  5. Flush Cache Storage
  6. Flush Catalog Images Cache
  7. Flush JavaScript/CSS Cache
  8. Logout and login from your admin panel
  9. Insert the license key

Back To Top

Basic configuration after installation

Enable Cart2Quote

This section will walk you through a basic Cart2Quote configuration. First the module needs to be enabled.

2.1

Located: System > Configuration > Cart2Quote > Quotations > General

Only use Cart2Quote’s backend functionality? Disable “Use Built-in Template Files”, “Detail page activation” and “List/Grid page activation”. This way, Cart2Quote functionality will be disabled for the front-end.

When you have a custom template or theme installed, you can integrate Cart2Quote properly by following the steps in the Cart2Quote theme integration manual.

2.1

By disabling “Detail page activation” and “List/Grid page activation”, you will have to compare Cart2Quotes’s template files with your custom theme files and manually paste relevant code in it.

Located: System > Configuration > Cart2Quote > Quotations > Quote Frontend

Back To Top

Set your language

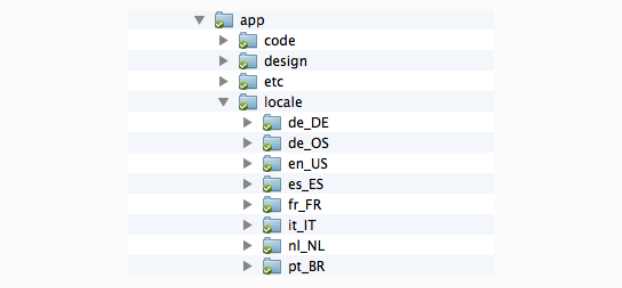

Cart2Quote comes with 7 languages included. If your country_LANGUAGE folder is missing, please add the Ophirah_Qquoteadv… files to your country_LANGUAGE folder and translate them if necessary

2.2

Back To Top

Configure tax settings

Since version 4.1.5 Cart2Quote supports all Magento tax settings. Your catalog base prices can be set to including or excluding tax. Cart2Quote will follow the behavior of the Magento tax settings, but we recommend entering the prices in the backend excluding tax.

Located: System > Configuration > Sales > Tax

Back To Top

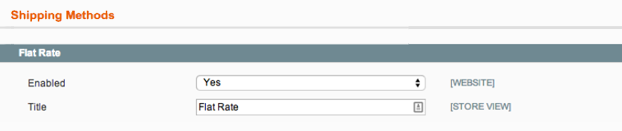

Configure shipping methods

Cart2Quote relies on the flat rate option to correctly display the shipping information on the quote. You can turn on the flat rate in the configuration of Magento.

Located: System > Configuration > Sales > Shipping Methods

2.3

Back To Top

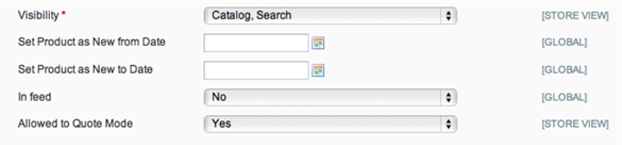

Test the module

Open a product and set “Allow Quote Requests” to “Yes” and Save the page.

Go to the front-end and add this product to the quotation list, enter your details, submit the form and process the quotation in the backend, submit it back to the customer and, as a customer accept and checkout, with the proposed prices.

Located: Catalog > Manage Products > [product] > General

2.4

Now do the same from the backend; add this product to the quotation list, enter your details, submit the form and process the quotation in the backend, submit it back to the customer and, as a customer accept and checkout, with the proposed prices.

Back To Top

Cart2Quote Back-end Configuration Settings

General

In this section, Cart2Quote’s configuration screen in the back-end will be explained. The most relevant items in each tab of the configuration of Cart2Quote in the Magento Admin Panel will be discussed in further detail.

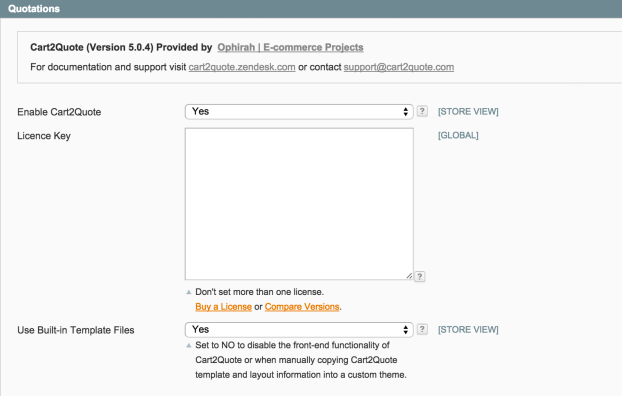

1

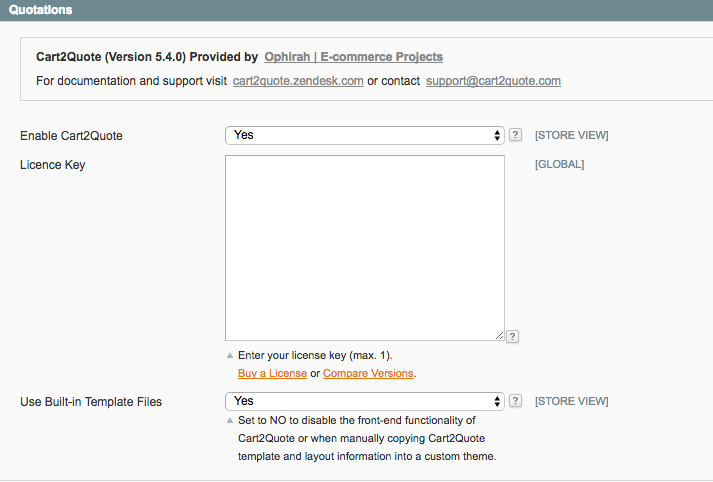

Enable Cart2Quote
With the “Enabled” option you can choose to enable/disable the output Cart2Quote produces. This means that when the option is set to “Disabled”, you should not see anything related to Cart2Quote in the front-end. However the Cart2Quote extension will remain active and accessible in your admin section.

License Key
For almost all versions of the Cart2Quote extension a license key is required. The only exception to this is when you are using the trial version, in this case you can leave the “License key” field blank.

If you’re using license keys for multiple domains, be sure to separate them with a semicolon “;”.
To learn more about the different versions available check our editions and pricing.

Use Built-in Template Files
If this option is set to “No”, you have to manually copy the Cart2Quote template and layout information to your own template and layout files to enable the front-end functionality. Cart2Quote will be disabled completely for the front-end. When you already have a custom template/theme installed, it is advised to set the options “Detail page activation” and ‘List/Grid page activation’ to “No”. Cart2Quote will not overwrite your theme files for these pages. By selecting “No” you will have to compare Cart2Quotes’s template files with your custom theme files and manually paste relevant code in it.

2

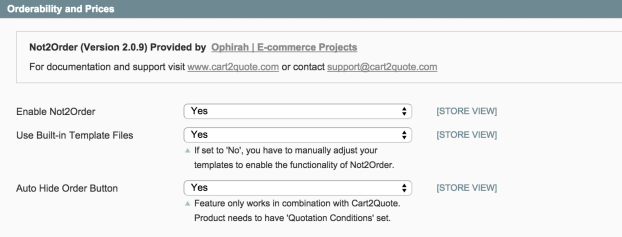

Enable Not2Order (Cart2Quote extension)
Simply prevent your customers from seeing your prices when the order functionality is disabled. Enable or disable the order functionality for any individual product, product range, storeview, store or complete website. Optionally show prices only to registered customers. This extension gives you full control over which products should show prices and add-to-cart buttons and which ones have their prices and/or Add to Cart button hidden. Go to the website of Not2Order for more information and buying options.

Back To Top

Quote Front-end

3

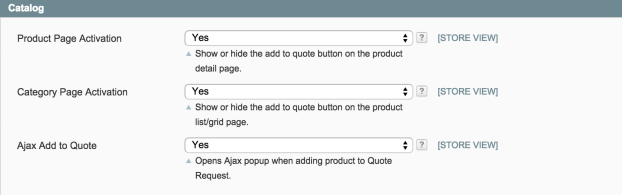

Product Page Activation
Enable/disable the ‘Add to Quote button’ in the front-end layout for the product detail page.

Category Page Activation
Enable/disable the ‘Add to Quote button’ in the front-end layout for the product List/Grid page.

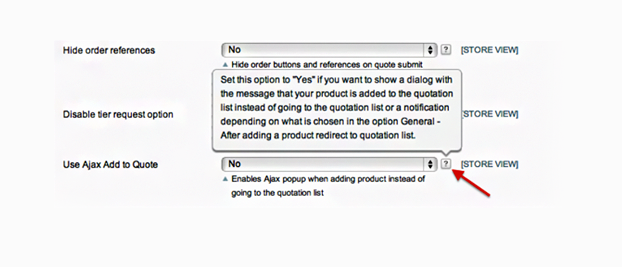

Ajax Add to Quote
Set this option to “Yes” if you want to show a dialog with the message that your product is added to the quotation list instead of going to the quotation list or a notification depending on what is chosen in the option General – After adding a product redirect to quotation list.

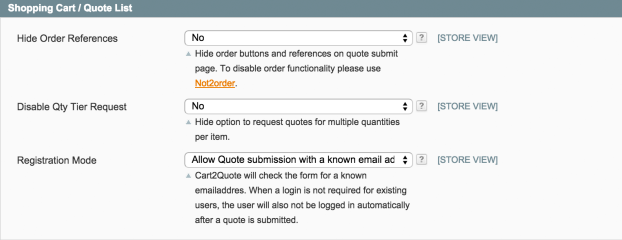

4

Hide Order References
Set this option to “Yes” if you want to hide Shopping cart related buttons on the request for quote page. If you choose not to user the order functionality please consider using Not2order.

Disable Qty. Tier Request
Set this option to “Yes” if you want to hide the option to request quotes for multiple quantities per item.

Registration Mode
You can use this option to determine if a customer needs to be a registered user before submitting a request quote. If you set this option to “No” a login is required before submitting, when “Yes” is selected you don’t need to. This means any customer registered or not-registered can request a quote. If a not-registered customer requests a quote the customer automatically becomes a registered user with the information that was used for the request.

Back To Top

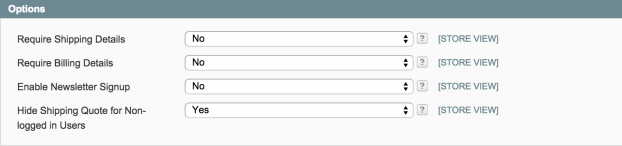

Quote Form Builder

5

Require Shipping Details
When this option is set to “Yes” it is required to provide shipping details with a quote request.

Require Billing Details
When this option is set to “Yes” requesting a quote will require billing details.

Enable Newsletter Signup
When this option is set to “Yes” customers have the ability to sign up for the newsletter.

Hide Shipping Quote for Non-logged in Users
When this option is set to “Yes” it hides the shipping details in the quotation overview of the client. When this option is set to “Yes” it disables requesting shipping quotes for guests and shipping quotes will only be available for logged in users.

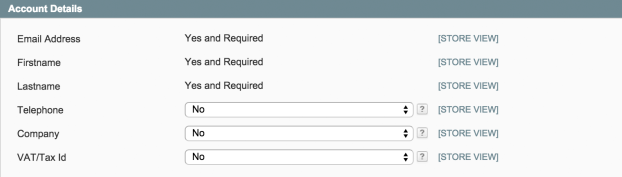

6

Telephone
Set this option to “Yes” to show the telephone field and no to hide the telephone field on the quotation form. If this option is set to “Yes and required” the displayed telephone field is also required to fill out by the client in order to submit the quotation form.

Company
Set this option to “Yes” to show the company field and no to hide the company field on the quotation form. If this option is set to “Yes and required” the displayed company field is also required to fill out by the client in order to submit the quotation form.

VAT/Tax Id
Set this option to “Yes” to show the VAT number field and no to hide the VAT number field on the quotation form. If this option is set to “Yes and required” the displayed VAT number field is also required to fill out by the client in order to submit the quotation form.

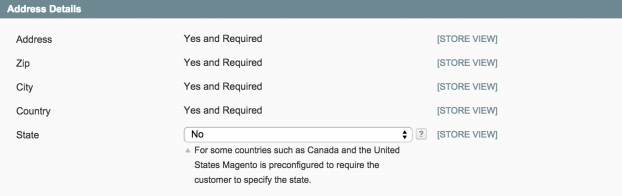

7

State
Set this option to ‘Yes’ to show the State field and no to hide the State field within the address details on the quotation form. If this option is set to ‘Yes and required’ the displayed State field is also required to fill out by the client in order to submit the quotation form.

Note: The address details are only visible if a guest or user has to enter shipping details.

Back To Top

Quote E-mails

8

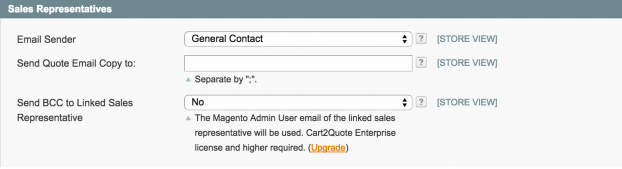

E-mail Sender
With this option you can select the sender from which the e-mail will be sent.

Send Quote E-mail Copy to:
Specify the e-mail addresses where a copy of the quote will be sent to. If you are using multiple addresses use a semicolon “;” to separate these.

Send BCC to Linked Sales Representative
Select “Yes” if you a want to send a BCC to the assigned sales representative.

9

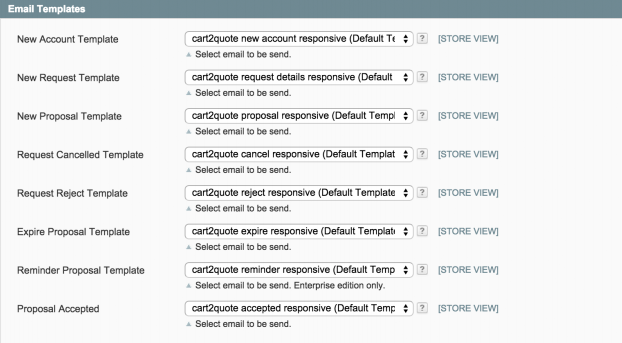

This section explains the different e-mail templates that can be set with Cart2Quote. Cart2Quote simply uses the templates available in Magento. More information on how to make e-mail templates can be found online. (e.g. here)

New Account Template
Here you can specify the e-mail template for the e-mail that is sent when an account is created or choose to disable sending this e-mail.

New Request Template
Here you can specify the e-mail templates for the e-mail that is sent when a new request for a quote is made or choose to disable sending this e-mail.

New Proposal Template
Here you can specify the e-mail template for the e-mail that is sent when a new proposal for a quote is made or choose to disable sending this e-mail.

Request Cancelled Template
Here you can specify the e-mail template for the e-mail that is sent when a request is cancelled or choose to disable sending this e-mail.

Request Reject Template
Here you can specify the e-mail template that is sent when a request is rejected or choose to disable sending this e-mail.

Expire Proposal Template
Here you can specify the e-mail template for the e-mail that is sent when a proposal is expired or choose to disable sending this e-mail.

Reminder Proposal Template
Here you can specify the e-mail template for the e-mail that is sent as a reminder for the proposal or choose to disable sending this e-mail.

Proposal Accepted
Here you can specify the e-mail template for the e-mail that is sent when the proposal is accepted or choose to disable sending this e-mail.

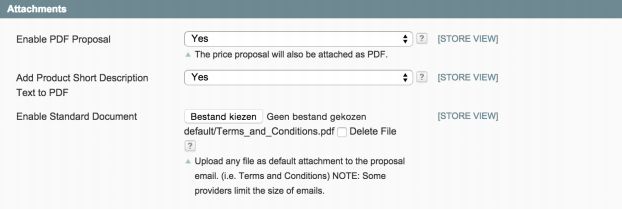

10

Enable PDF Proposal
If you set this option to “Yes” a PDF is created when a proposal is submitted and will be attached to the email.

Add Product Short Description Text to PDF
Set this option to “Yes” if you want to include the short description of the product(s) in the PDF file.

Enable Standard Document
With this option you can select a file that will be attached to the proposal e-mail (i.e. Terms and Conditions).

Note: Some providers may limit the size of e-mails.

Back To Top

Quote Configuration

11

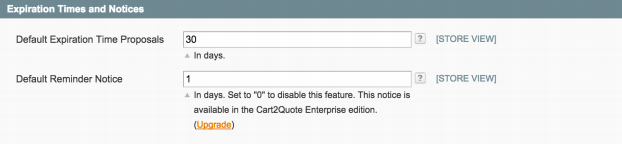

Default Expiration Time Proposals
With this option you can set the number of days it takes for a quote proposal to expire.

Default Reminder Notice (Cart2Quote Enterprise)
This option determines after how many days a reminder will be sent for active quotes. Set the value to “0” to disable the reminder feature.

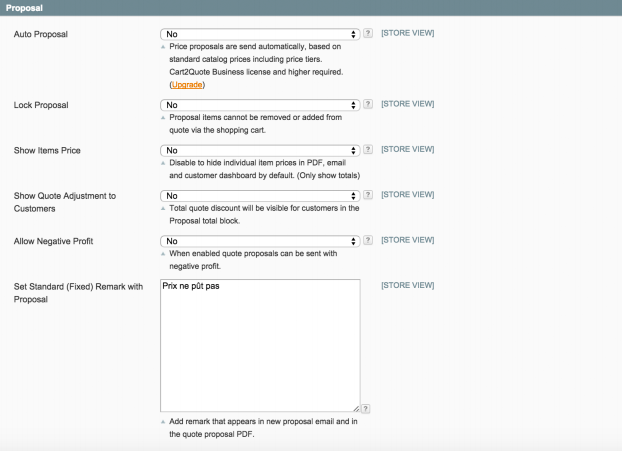

12

Auto Proposal (Cart2Quote Business or higher)
When this option is set to “Yes” a proposal will be sent automatically based on the standard (tier) prices of the product.

Lock Proposal
When set to “Yes” proposal items cannot be removed or added from a quote via the shopping cart when the quote is confirmed.

Show Items Price
Set this option to “No” to hide the individual item prices in PDF, E-mail and Customer dashboard. By default these will now only show total prices.

Show Quote Adjustment to Customers
Set this option to “Yes” if you want your customers to see the total quote adjustment.

Allow Negative Profit
When this is option is set to “Yes” you will be allowed to send a proposal that has a negative profit.

Set Standard (Fixed) Remark with Proposal
With this option you can set a default remark for your proposals that will appear in the proposal e-mails and PDF.

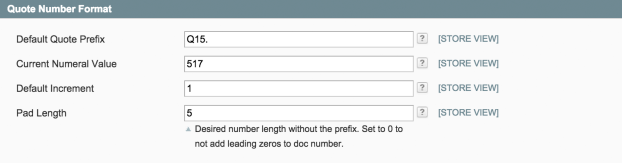

13

Default Quote Prefix
Here you can define the prefix that is used for numbering your quotes.

Note: The quote number is a combination of the quote prefix and a numeral value.

Current Numeral Value
Here you can define the current numeral value. This is automatically set to the last one that is used.

Default Increment
Here you can set the value with which the numeral value part of the quote number should increment.

Pad Length
Here you can specify the length of the numeral part of the quote number. If this is set 0 or is left empty then it will add leading zero’s meaning it will just have the incremented value as numeral part.

Back To Top

Sales Representatives

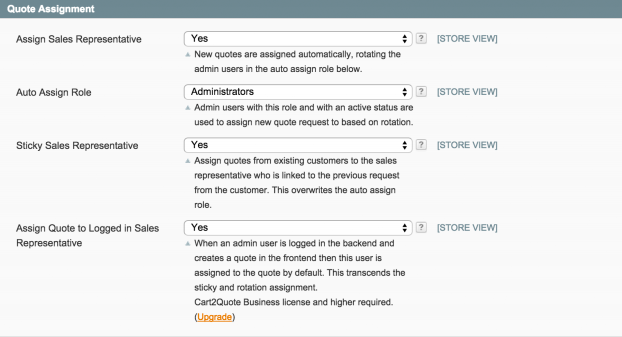

14

Assign Sales Representative
By selecting “Yes” an admin user will be assigned as sales representative when a quote request is created. As default the user will be selected from a pool of users that have the role as is specified in the option “Auto assign role”. The assigning of users will happen in a rotating fashion.

Auto Assign Role
Here you can choose the role from which the Auto Assign function should pick the users as a sales representative for a newly created quote.

Note: The auto assign function only assigns users that have an active status. Assigning the sales representatives happens in the following order:

Logged in > Previous > Auto assign by rotating

Please note: Included in the Business version is the ability to link specific sales representatives to customers and quotes. When using this feature it comes in handy to be able to show the details of this linked sales representative in the e-mails regarding the quotation. This way, customers can get in contact directly with the person that created or will create the quote.

To use the e-mail including the sales representative add the following in the e-mail template:
Sales Representative Email: {{var quote.getSalesRepresentative().getEmail()}}
Sales Representative Name: {{var quote.getSalesRepresentative().getName()}}
Sales Representative Telephone: {{var quote.getSalesRepresentative().getTelephone()}}

Sticky Sales Representative
When this option is set to “Yes” a newly created quote will be assigned to the sales representative that handled previous quote from this customer. If this is the first quote the customer has created then one of the other assigning methods applies.

Assign Quote to Logged in Sales Representative (Cart2Quote Business or higher)
Setting this option to “Yes” means when a user is logged in the back-end while creating a quote in the frontend the quote will be automatically assigned to that user. This option transcends the auto assign by role and previous quote behavior.

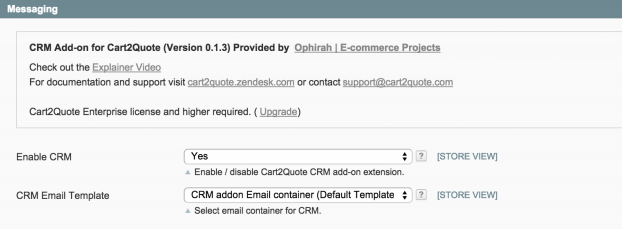

15

Enable CRM (Cart2Quote Enterprise or higher)
Set this option to “Yes” to enable client messaging for the Cart2Quote quotations module.

CRM E-mail Template (Cart2Quote Enterprise or higher)
Select the default messaging template. By default messages from the CRM extension will be sent using this message template.

Back To Top

Advanced Settings

16

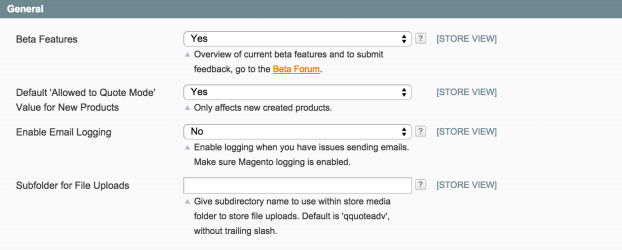

Beta Features
With the “Beta Features” option you can choose to use the beta features that are available. If this option is set to “Yes”, you can use all the Beta features that are included in your installed version of the Cart2Quote extension. To check which Beta features are available for you, please visit our release notes and look for your Cart2Quote version.

Default ‘Allowed to Quote Mode’ Value for New Products
Set this option to “Yes” to make new products quotable by default.

Enable E-mail Logging
Set this option to “Yes” if you have issues sending e-mails. Cart2Quote will then log the e-mail actions. Make sure Magento logging is enabled.

Located: var > log > c2q_email.log

Subfolder for File Uploads
By default uploaded files within the Cart2Quote extension will we located at /media/qquoteadv/. If you upload files that are attached to a quote they will be placed in a sub-folder named after the ID of that particular quote. With this option you can change only the folder where files are stored that are attached to a quote.

17

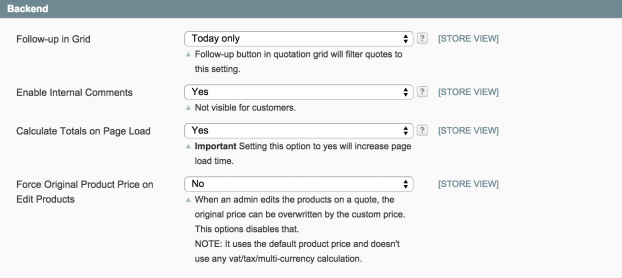

Follow-up in Grid
Set this option to “Yes” to hide quotes in the overview that have an expired follow up date in the admin section.

Enable Internal Comments
Set this option to “Yes” if you want to make use of internal comments. These comments will only be visible for back-end users and not for the customers.

Calculate Totals on Page Load
When this option is set to “Yes” the quote totals will be loaded on page load. This can dramatically increase load time. We recommend setting this option to “No”.

Force Original Product Price on Edit Products
When an admin edits the products on a quote, the original price can be overwritten by the custom price. This option disables that.

Note: It uses the default product price and doesn’t use any vat/tax/multi-currency calculation.
18

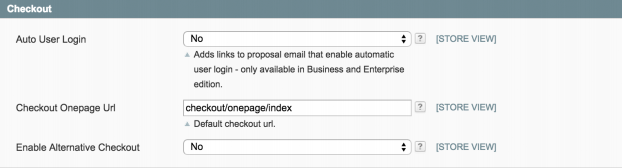

Auto User Login (Cart2Quote Business or higher)
Setting this option to “Yes” enables customers to login automatically from a link included in the e-mail templates. The customer will be directed to the customer dashboard or even directly to the Magento
checkout. Before sending the proposal e-mail to the customer, Cart2Quote generates a random number token (a large enough number to prevent guessing).

Checkout Onepage Url
Here you can define your checkout URL. When you use Magento’s default ckeckout page use the value “checkout/onepage/index”. If you want to use an alternative checkout onepage with the Cart2Quote extension, please replace the value with the alternative URL.

Enable Alternative Checkout
When this option is set to “Yes” you are able to use an alternative checkout URL.

Note: When using the alternative checkout, the Quote items will NOT be placed in the shopping cart
19

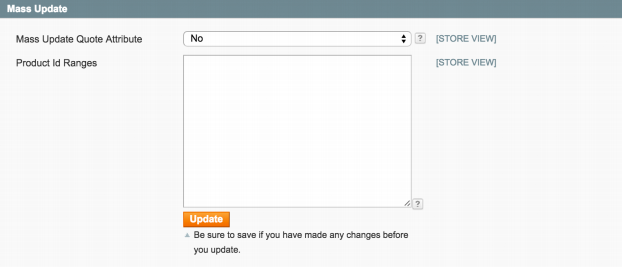

Mass Update Quote Attribute
With this option you can allow or disallow quote requests for mass updating products. Set this option to “Yes” if you want the product(s) specified in the field “Product id ranges” to be allowed for quote requests.

Product Id Ranges
In this field you can specify the product id’s that you want to update. The value that will be used for updating is determined in the field “Mass update quote attribute”. You can specify product id’s separately or in id ranges. Product id’s are separated with a comma “,” and for the ranges you start with the first product id of the range followed by a dash “-” then end with the product id with which you want to end the range. To find out which product id’s you can use, go to your “Manage products” page and look for ID in the header of
the grid. This page is found in the menu “Catalog”, when logged in to the back-end.

Example: Say you want to update the products with the id’s 1, 4 to 6 and 10 to 20 you can do this by entering: 1,4-6,10-20

Important note: You need to be sure that the id’s you specified are indeed product id’s, because your database will be directly updated with these values.

Back To Top

Troubleshooting, API and installation tips

Manuals and help tool

This manual is accompanied by a User Manual. This manual explains how your website visitor will experience Magento Quotations in the front-end and it shows how a shop admin is able to process quotation requests on a daily basis in the back-end. We have also added a help tool for all the options in the Cart2Quote configuration settings. Just hoover over the question mark and a help text will appear.

20

Back To Top

Purchase installation support

It is strongly recommended to let this Magento Quotation Module be installed by a technical implementer when you do not have the necessary knowledge of Magento modules’ installations. Cart2Quote has a core team of experienced professionals who are dedicated to offering Cart2Quote software installation, configuration and fine-tuning. Order installation or development support here.

Back To Top
